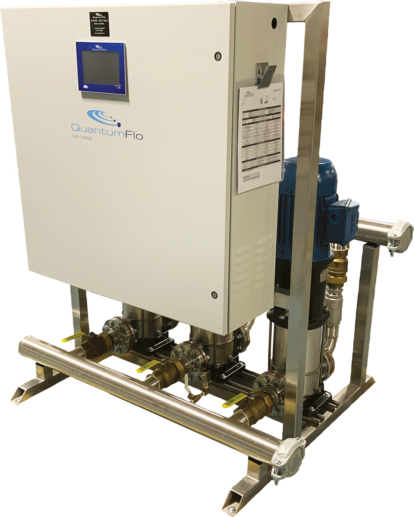

Genius

The Genius system utilizes vertical, multi-stage pumps that are ideal for low flow, high boost conditions.

The Genius Series is a highly compact, customizable package designed for LOW FLOW – HIGH BOOST applications. It features NSF 61 Rated, 304 S.S. multi-stage pumps with 304 stainless steel casing, shrouds and impeller. All controls are protected within a NEMA 3R forced-air ventilated enclosure with inlet filter and NEMA 4X active incoming surge suppressor with LED indicator.

All Genius systems come complete with our award-winning variable speed pressure control software iQFlo™, with GreenFlo™ ASHRAE/ANSI/IES Standard 90.1 compliant low-flow energy optimization algorithm.

Standard features include:
    • iQFlo (Award-Winning) Pressure Control Software with Integral Auto-Tuning
    • 5 Year Limited Warranty on the Entire 3rd Party Certified System
    • 304 Stainless Steel, Square Tube Space Frame and 304 Stainless Steel Headers
    • Standard 100,000 AIC Controller Rating at Incoming Disconnect
    • NSF 61 and NSF 372 System Compliance (N-5946/7626 IAPMO)
    • ANSI/ASHRAE/IES Standard 90.1 Energy Compliance via Integral GreenFlo™ logic algorithm – No Remote Sensors!
    • 5.7” TFT Full Color Touch Screen Interface with Integral Troubleshooting, Maintenance and Downloadable Trend Charts
    • Most Systems Fit Easily Through a Single Width Doorway for Retro-Fit Simplicity
    • Simplex, Duplex, Triplex and Quadraplex Systems Available for a Multitude of Voltages and Horsepower


QuantumFlo stands apart from competitors with products that are easy to size, price and submit.

Discover iQFlo 3.0

The award-winning technology has been updated to create the industry’s ONLY Booster Operating System Solution (B.O.S.S.).

Calculate with calQflo®

Our online pump sizing tool will match you with the right specs to best fit your next project.
